19″ Optical Distribution Frames

Applications

• Aluminium structure weight 1,5 kg.
• Replacable front
• Extractable
• Adjustable wings
• Flexible splice tray mounting
• Can be delivered empty or loaded



Decsription

The ODF is designed with loose front cover and is available in standard or costumized solutions.
All ODF´s is made of aluminium to secure a low weight on 1,5kg.
The flexible ODF makes it possible to mount most types of splice trays,.
The rear plate is flexible, accomodating all types of cable fitting.



Size	19″ x 1HE x 255mm
Material	Aluminium
Weight	1,5 kg
Surface	Black Powder Paint
Color	Black Ral 9005
Cable Entry	PG19, PG13,5 27x100mm. Åbning m. huller 2x20x27cm. Huller





Order Information

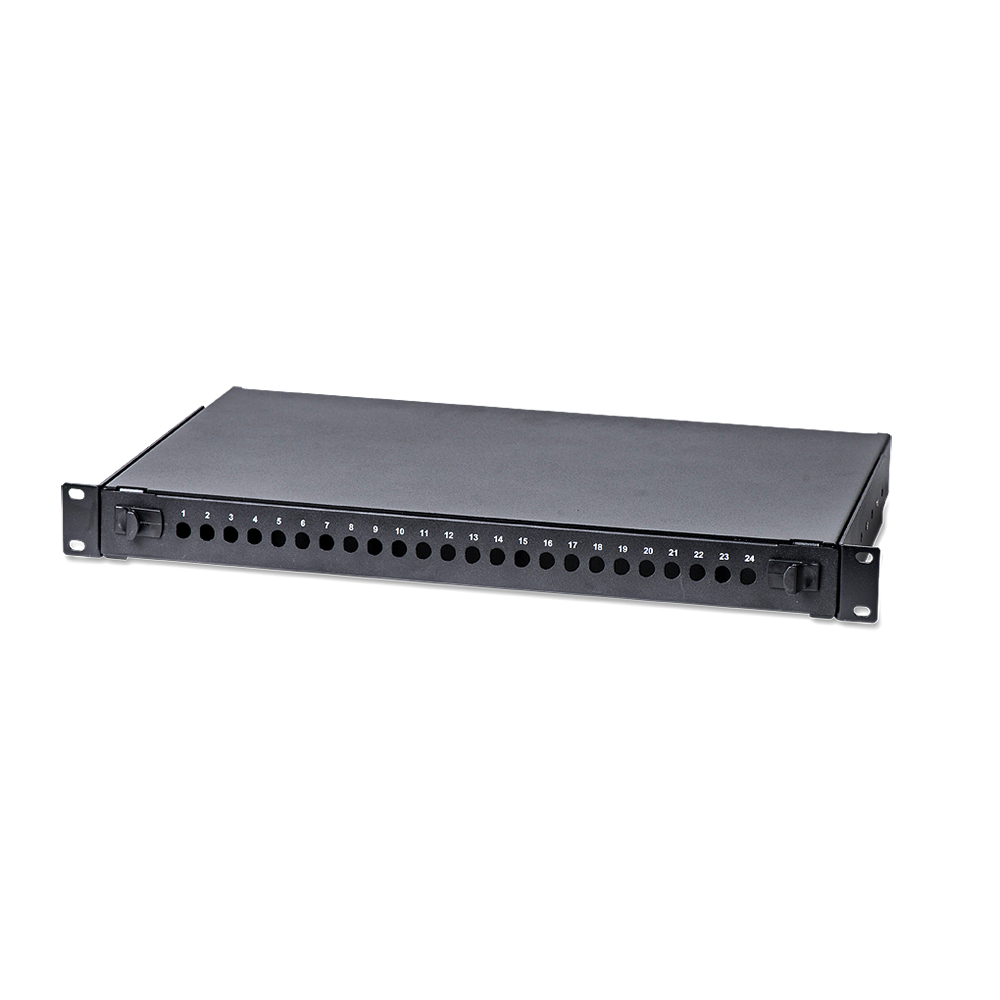

Order Number: 111-1101

ODF 19″ 1HE Black Alu

24 x ST/FC Simplex

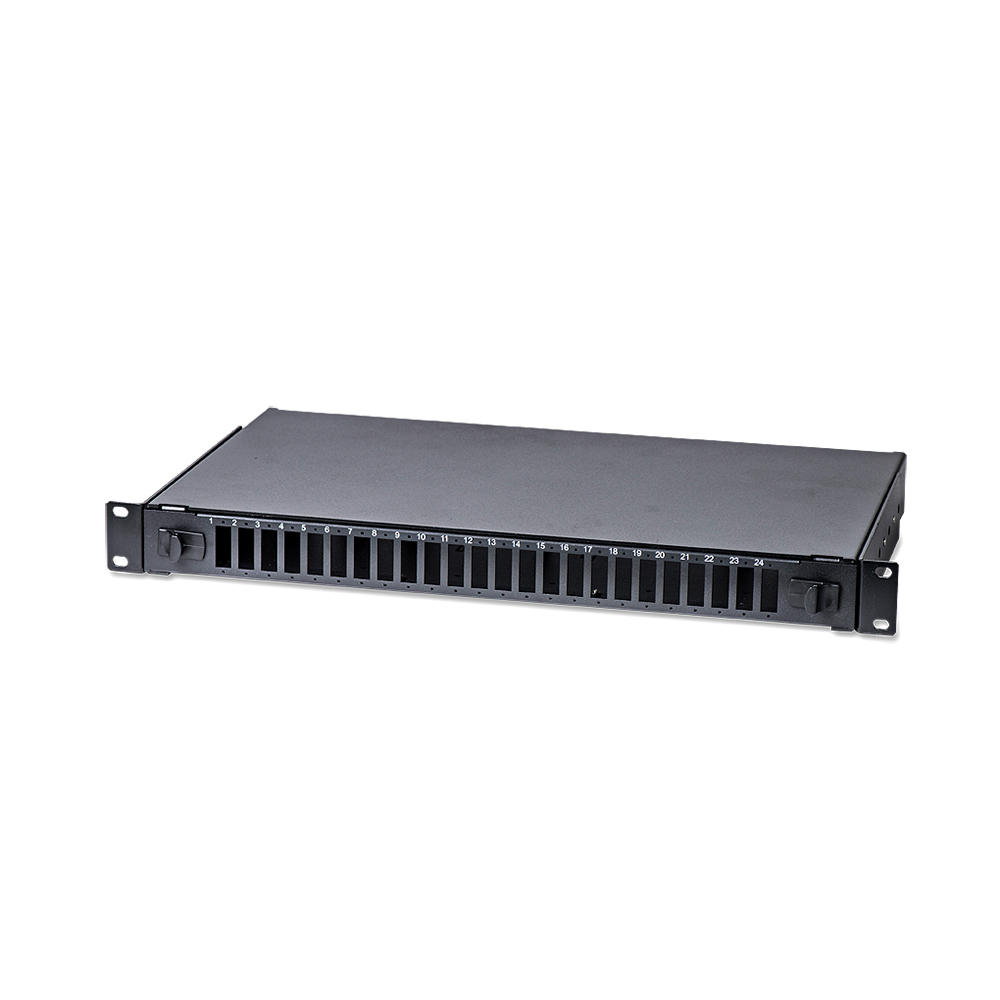

Order Number: 111-1102

ODF 19″ 1HE Black Alu

24xSC Duplex

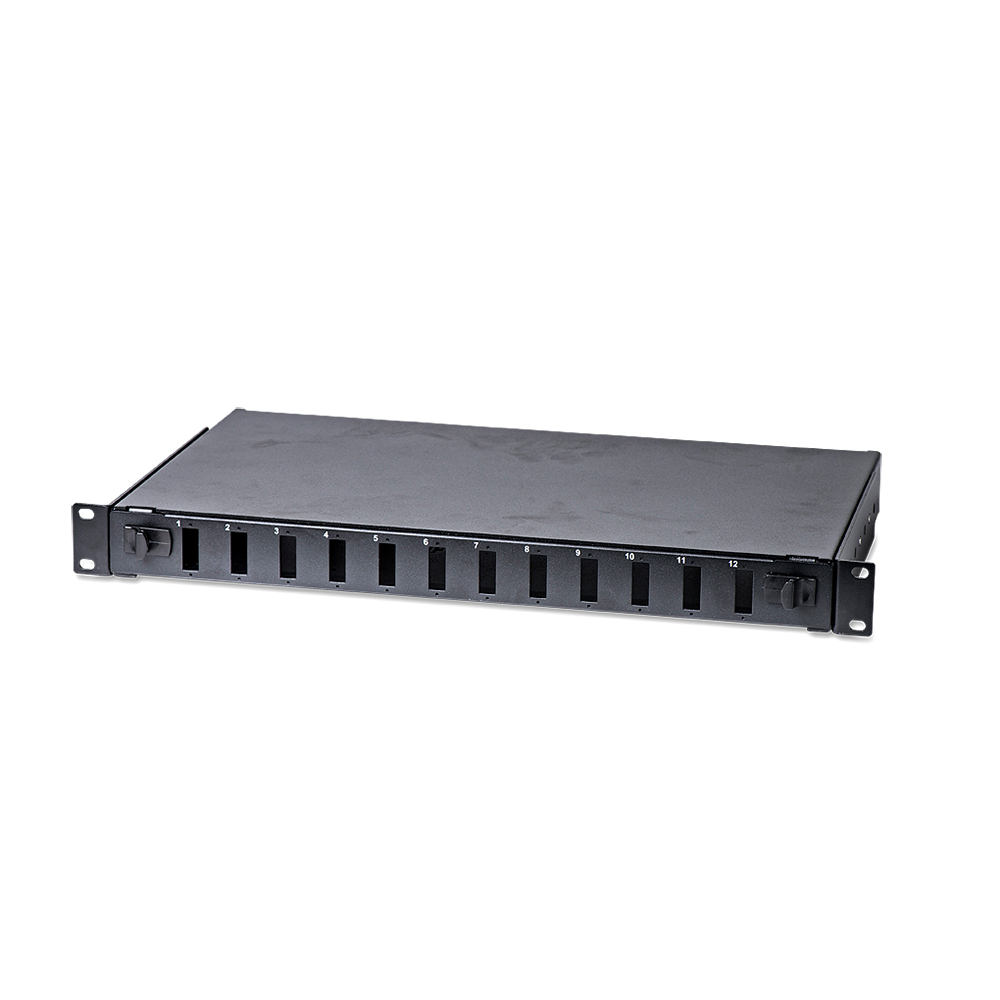

Order Number: 111-1103

ODF 19″ 1HE Black Alu

12xSC Duplex

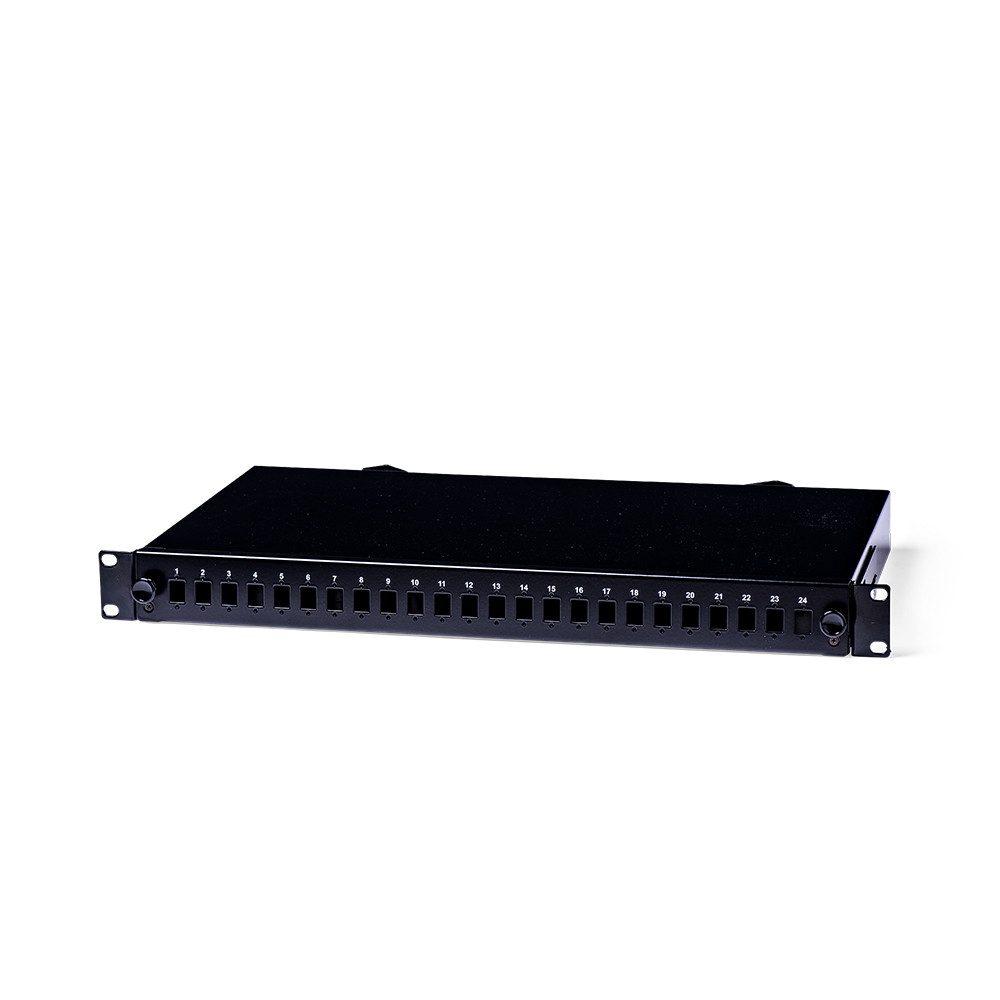

Order Number: 111-1105

ODF 19″ 1HE Black Alu

24xSC Simplex

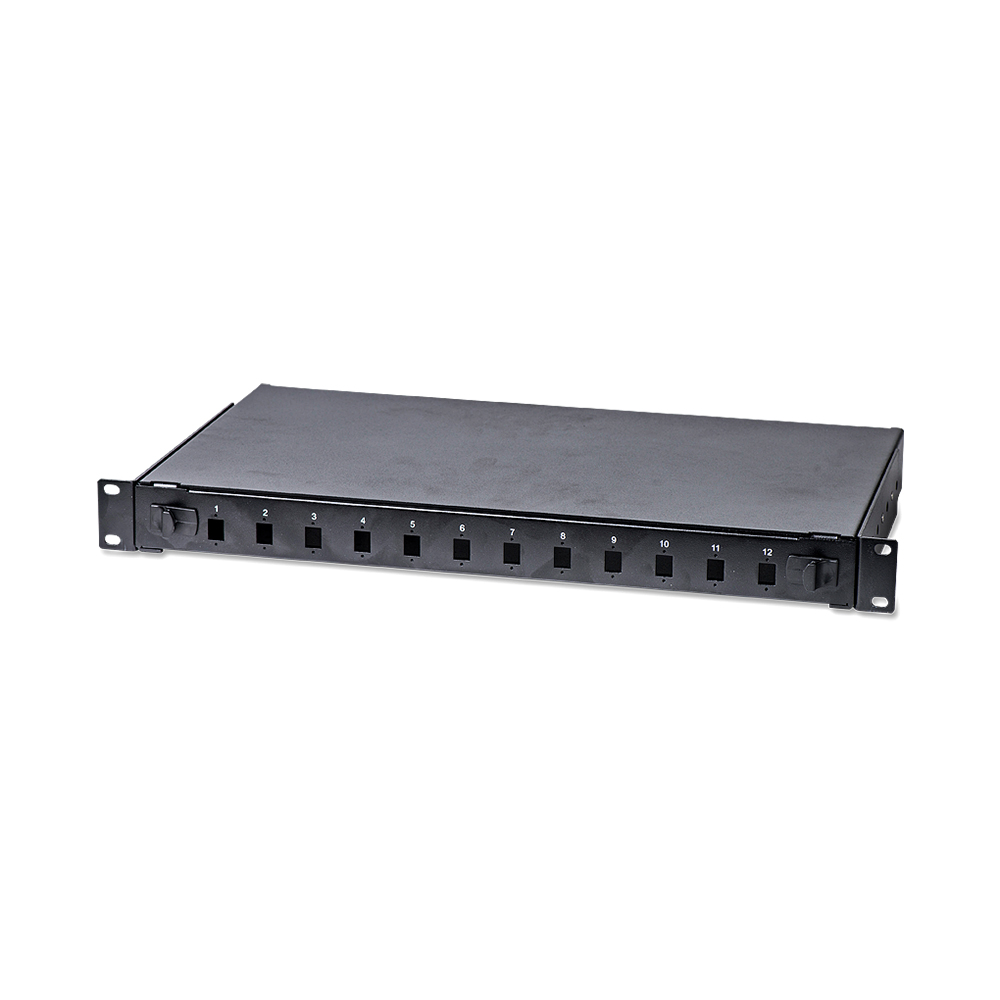

Order Number: 111-1106

ODF 19″ 1HE Black Alu

12xSC Simplex
