Corning Unisub HD

Corning

Description

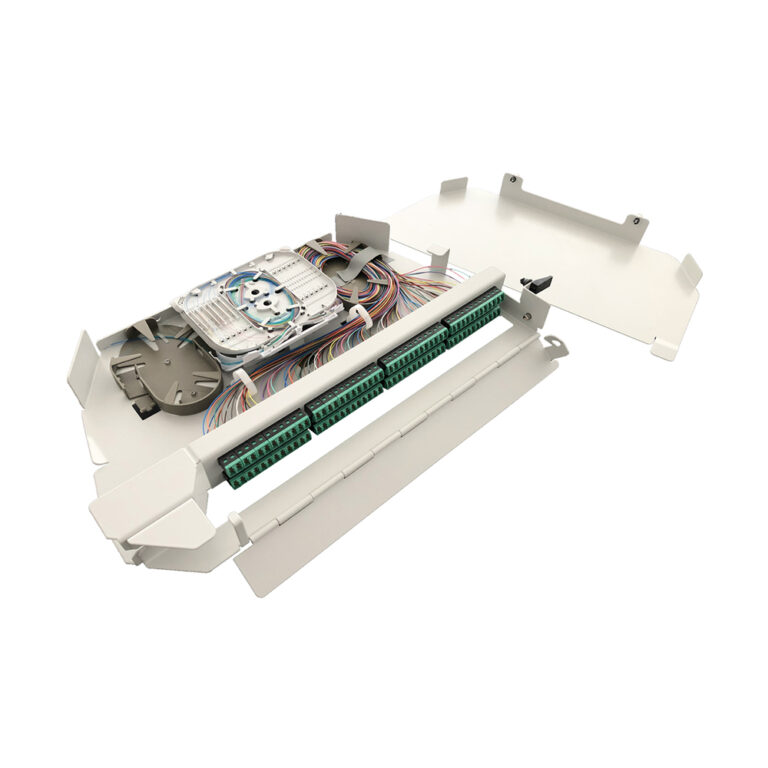

Unisub HD is a 19-inch optical distribution frame (ODF) solution optimized for street cabinets and available with one to four 1U drawers. Its 120° opening angle allows easy access and efficient cable management. A single Unisub HD can support up to 288 SC ports or 384 LC ports, with each drawer accommodating up to 72 SC ports or 96 LC ports.

The 19-inch bracket is installed separately from the drawer, reducing weight and enabling two-handed installation. Each drawer can hold up to 12 tubes of 5 mm OD (Miniflex®, Bluelite), 12 tubes of 3 mm OD (Centrix™), and up to 48 cables of 2.5 mm OD.

Unisub HD uses the proven cassette tray system. The front panel and top cover provide full protection for fibers and cables, and the front panel comes with laser-printed port identification for clear and secure management.

Features and Benefit

Swivelling panel provides access to incoming cables
from the front of the cabinet
A single Unisub HD can support up to 288 SC ports
or 384 LC ports
Full fibre protection
Sturdy design
Ports are easily identifiable
