Everon LANscape®

Description

Cornings Everon® LAN1 Fibre Housings are designed to fulfill all your connectivity needs in any enterprise cabling installation that is based in a 19-inch rack. Whether you have to cable a building backbone, a small to medium-sized campus network or even a low density distribution frame, the LAN1 Fibre Housings always offer the right answer. The three basic options of the product family give you flexibility and offer a panel for every installation:

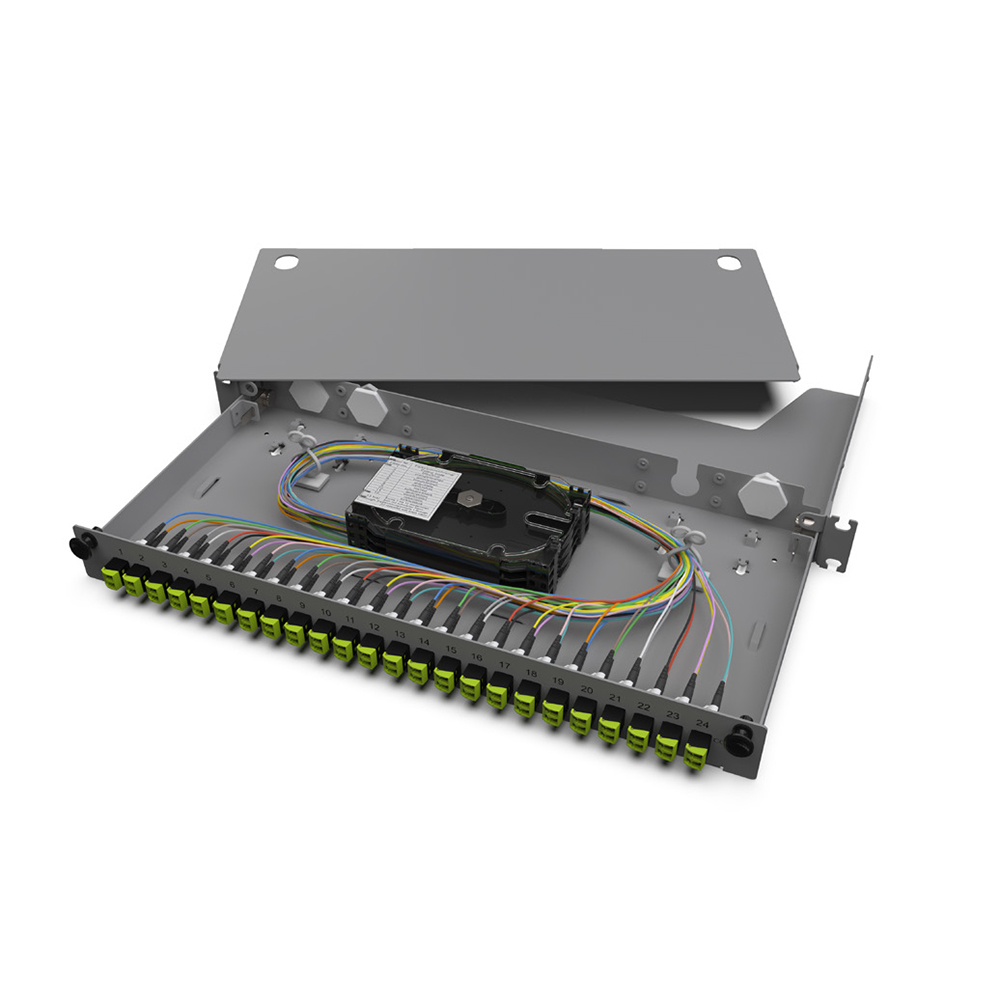

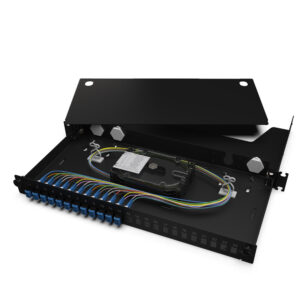

Equipped with adapters and splice packs for maximum protection and easy segregation of fibres the fully loaded housing option is ready for fusion splicing.

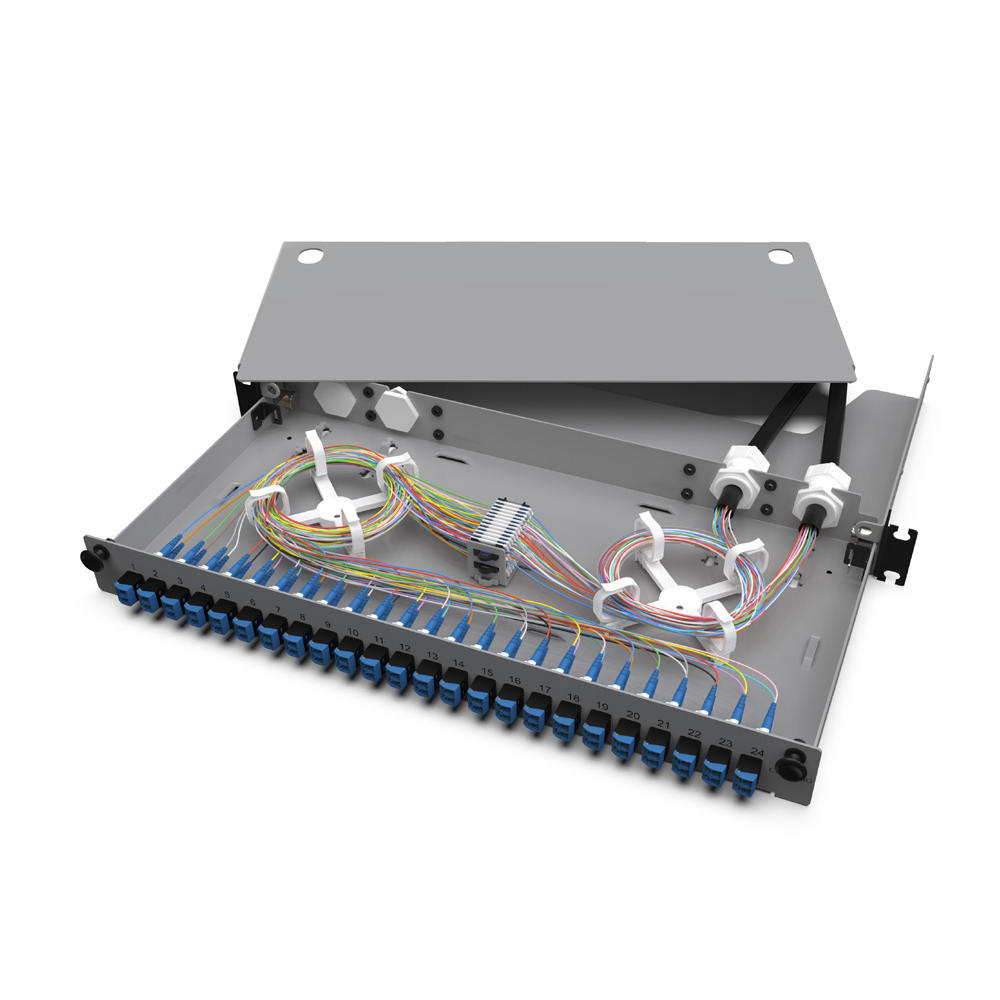

The housing variation with adapters and splice bridge offers an economic alternative for fusion splicing applications, saving time while routing and splicing the fibres inside the housing.

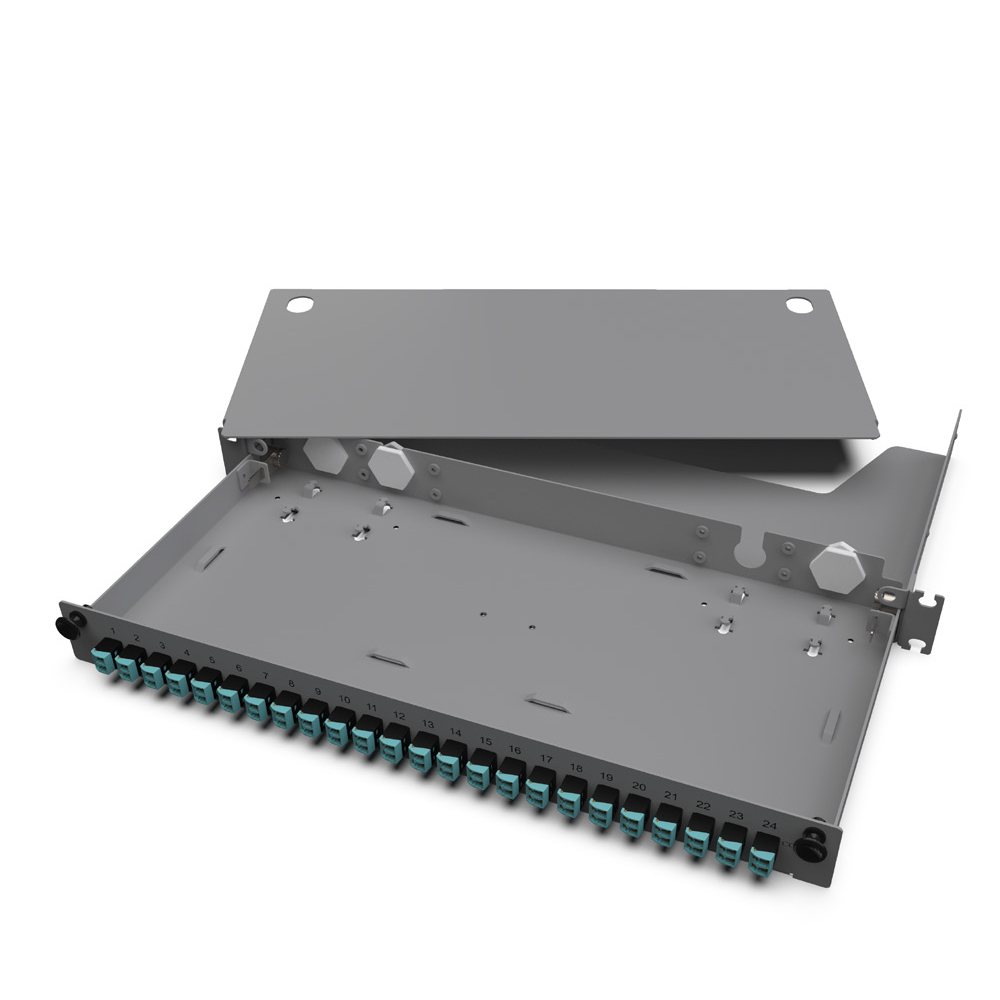

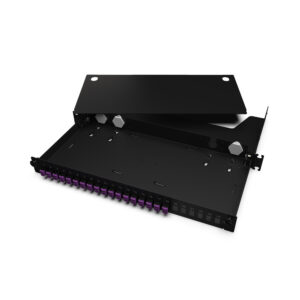

For a low fibre count installation with either pre-terminated assemblies or using UniCam® NPC+ or FuseLite® 2 connectors for field termination. The housing comes with a front panel including adapters that match your choice of connectivity.

Accessories for pre-terminated assemblies or Plug & Play™ or EDGE™ solutions trunks and FTTD/FTTO applications have to be ordered separately.

LANscape® solutions are available in a wide range of variants. If you would like more information about which options we can offer, please contact us at info@bbtfiberoptic.dk or +45 45 41 20 40.

Features & Benefits

• Easy to remove top cover No tools needed
• Housing made of aluminium Lightweight, but robust
• Quick-mount feature Allows single-person mounting of housing

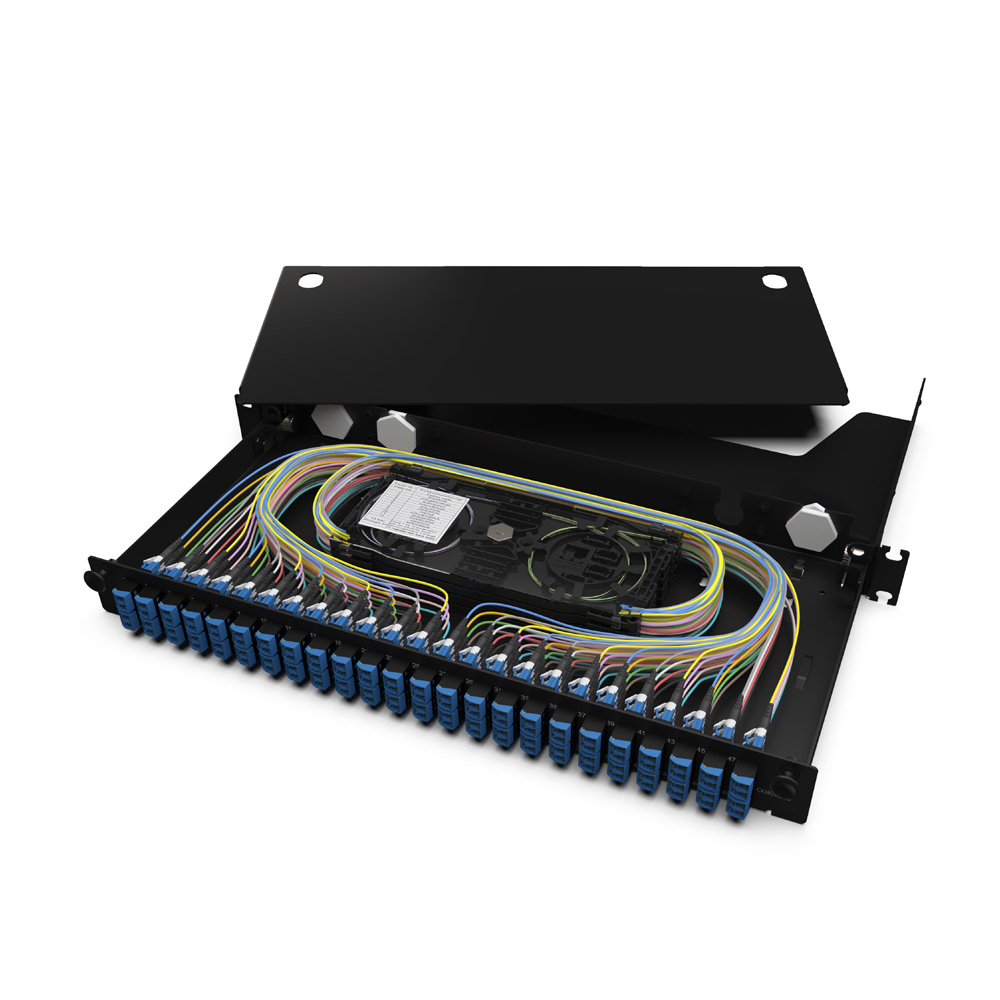

• Splice capacity of up to 96 fibres in 1U Segmentation of fusion splices with splice packs of 12 fibres each or cassettes with 24 fibres each
• Accommodate different termination methods Pigtail splicing, field connectorisation, pre-terminated cables, Plug & Play™ or EDGE™ trunks can be installed in the same housing
• Adapters with ceramic inserts and LC duplex with shutters Minimal insertion loss and clean connectors
• Low installation depth Mountable in shallow cabinets or racks
• Available in black or grey Colour can be chosen to best suit the application
• Multiple labelling options Port numbering above adapter or customised labels
• Grounding Prepared Grounding preparation for entire housing, including front panel
• 900 μm pigtails and 250 μm fibre are Telcordia colour-coded that reduce installation time during fibre identification
• Pigtails are pre-stripped to 250 μm and pre-routed for configurations with splice trays
• 900 μm TB (Easy Strip): reduces stripping time

Examples of LANscape® Solutions
